Features
Working Area: The size of the machine's cutting and engraving area is 300 x 200mm.
Cutting and Engraving Capability: The machine is able to both cut and engrave a wide range of materials, including wood, acrylic, plastic, rubber, leather, paper, glass…
Laser Tube: A high-quality, long-lasting CO2 laser tube that can provide a consistent and powerful laser beam.
Cooling System: The machine has a reliable and efficient cooling system to prevent the laser tube from overheating during operation.

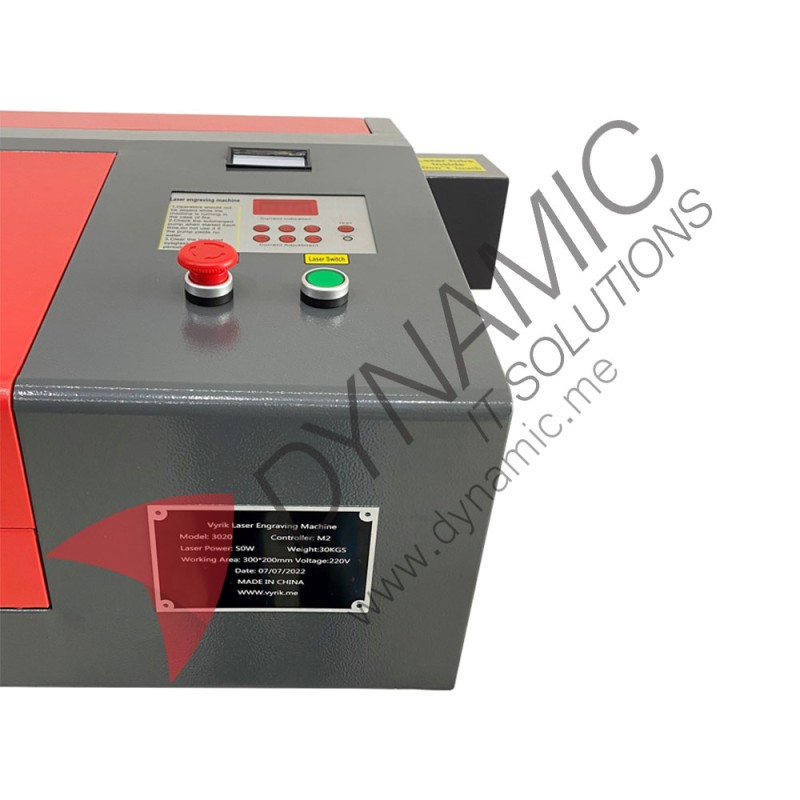

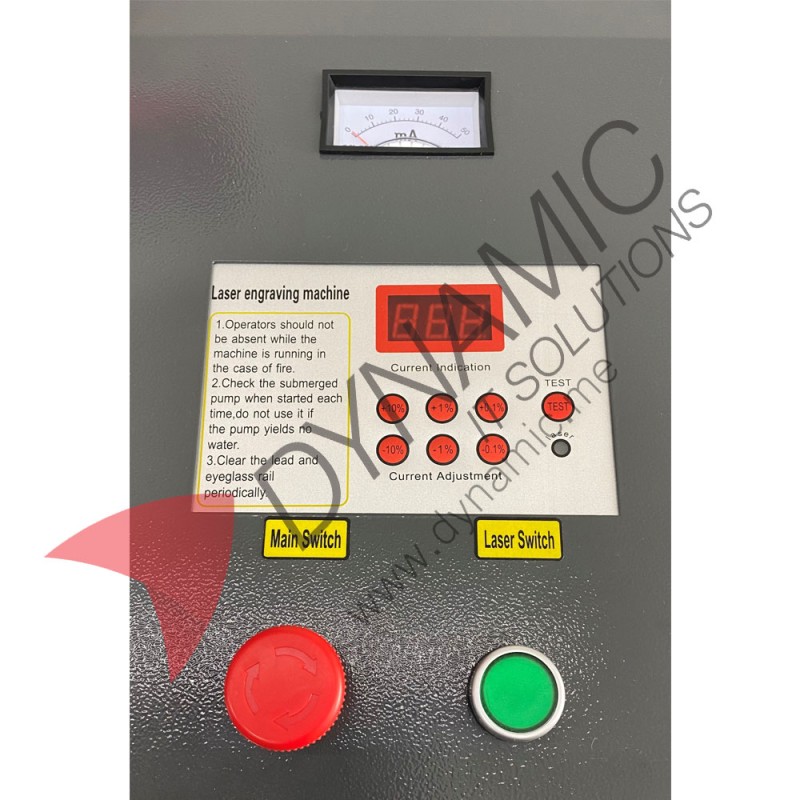

Control Panel: A user-friendly control panel allows you to adjust the laser's power and speed settings, as well as control other aspects of the machine's operation.


Specifications

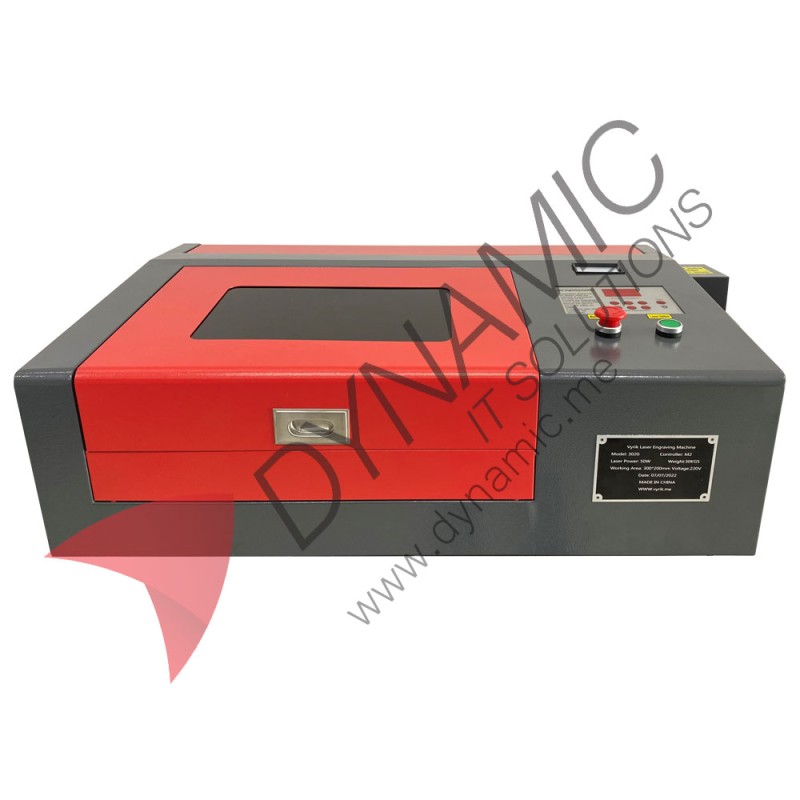

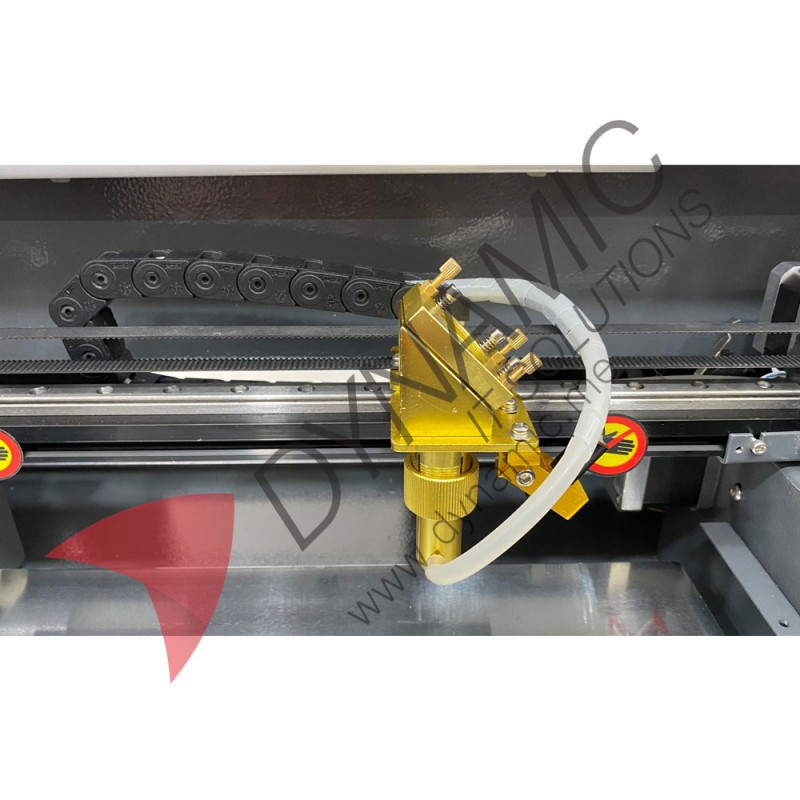

Machine Name: Vyrik 3020 50W Co2 Laser Machine (liftable Bed) Incl. all Upgrades
Model Number: VC0-3020-50
Working Area: 30x20cm (X, Y axis)
Z Clearance: cm
Laser Power: 50W
Laser Power Supply: ZYE MYJG
Main Board: Main Control Board M2
Cooling: Water Pump
Limit Switch: Mechanical
Transmission Method: Belt Driven

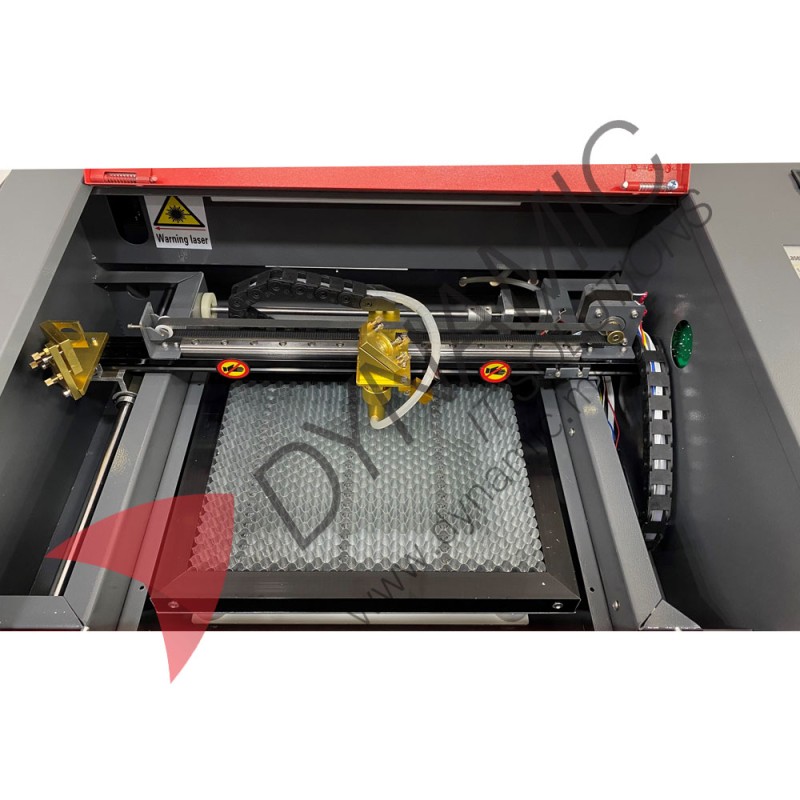

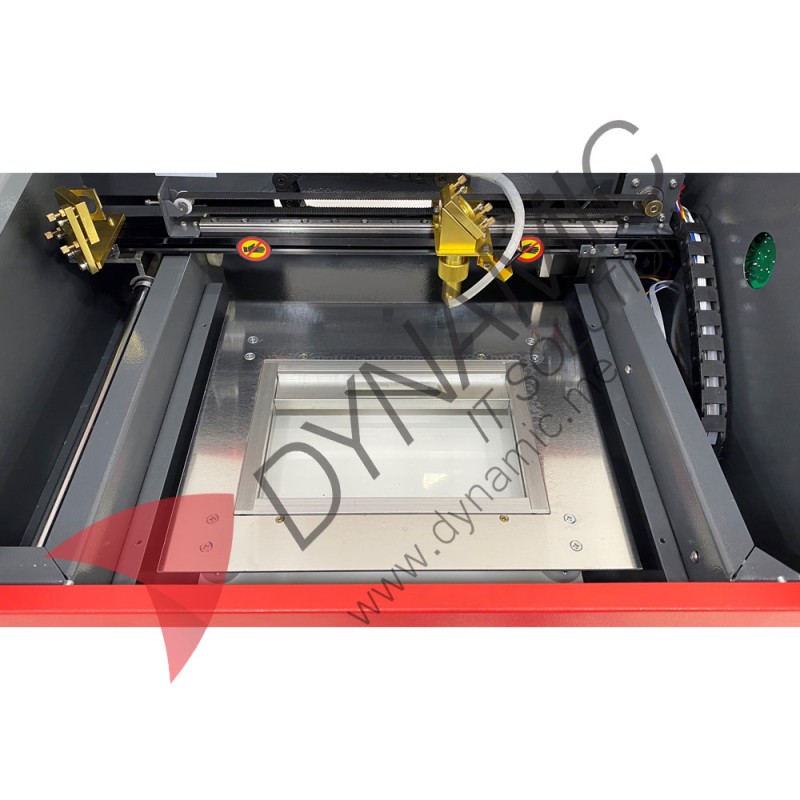

Bed: Honey Comb Table and Manual UP & Down Worktable
Positioning: Red light
Safety: Emergency Stop Button / Water Flow Sensor

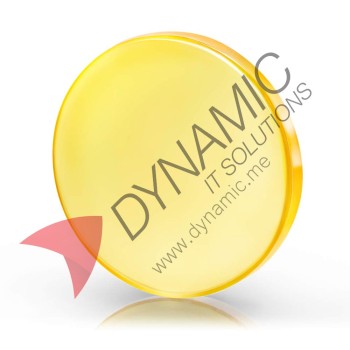

Lens Size: Ø12mm
Reflective Mirrors Size: Ø18mm
Air Compressor: 25W
Exhaust Fan: 35W
Software: Illustrator / Laserdrw / K40 Whisperer
System: Windows 7 / Windows 10 / Windows 11
Communication: USB Cable
Input Voltage: AC220 ±10% / 50Hz
Power Consumption: 500W
Warranty: One year (Not Incl. Laser Tube and Mirrors)
Weight: 55Kg
Machine Size: 90x53x32cm
Packing Size: 105x65x42cm

Capabilities
Engraving: Wood, Acrylic, Plastic, Rubber, Leather, Textiles, Paper, Glass
Cutting: Wood, Acrylic, Plastic, Rubber, Leather, Textiles, Paper

Accessories Included
- Water Pump
- Smoke Pipe
- Exhaust Fan
- Air Pump

Included Upgrades
- Liftable Bed
- Honeycomb Bed
- Air Assist (Air Pump Included)
- 50W Laser (Not 40W)
