Specifications:

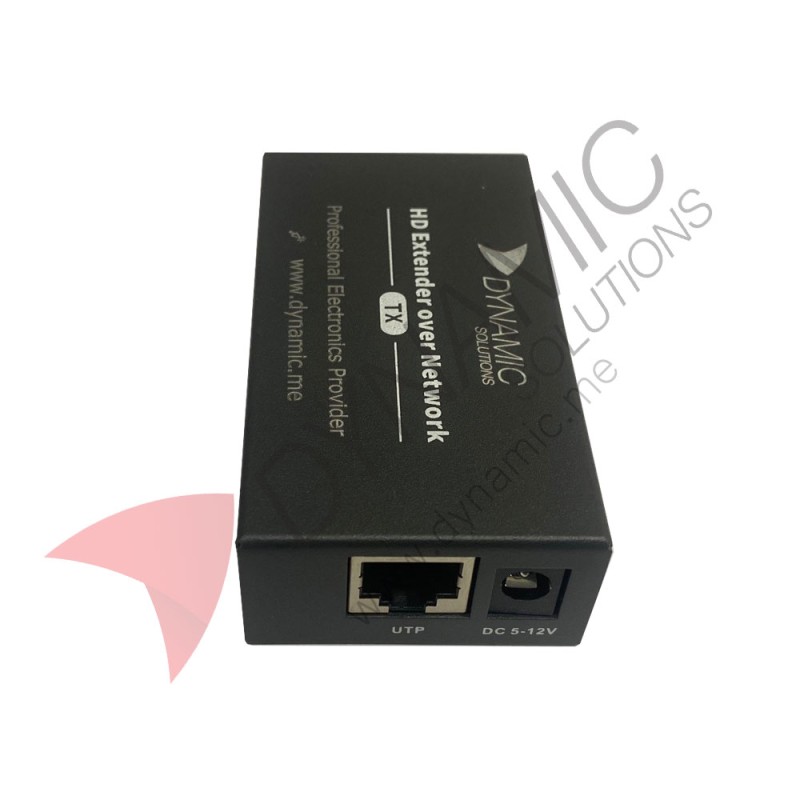

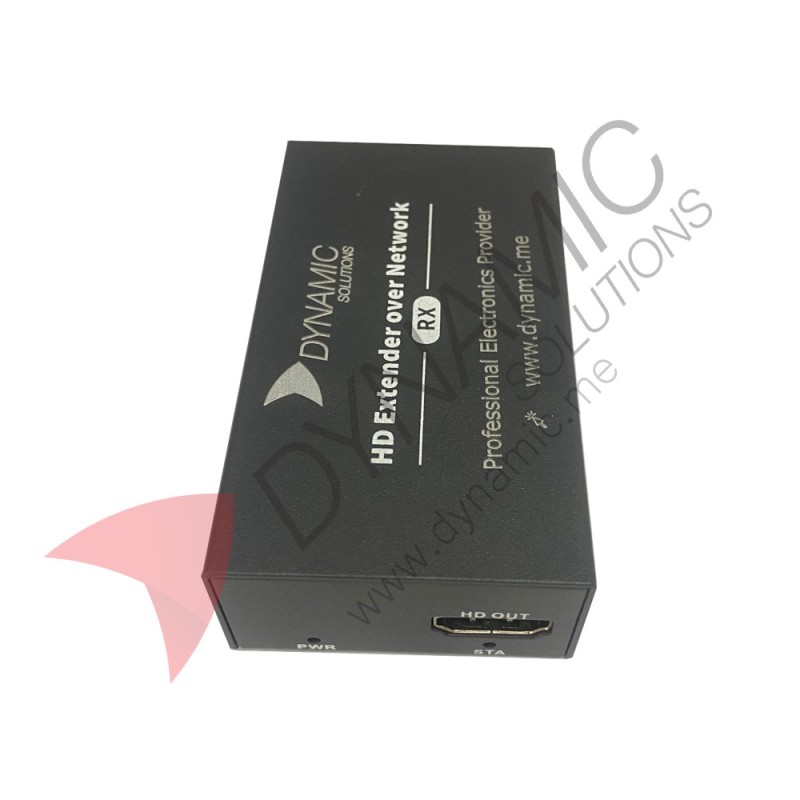

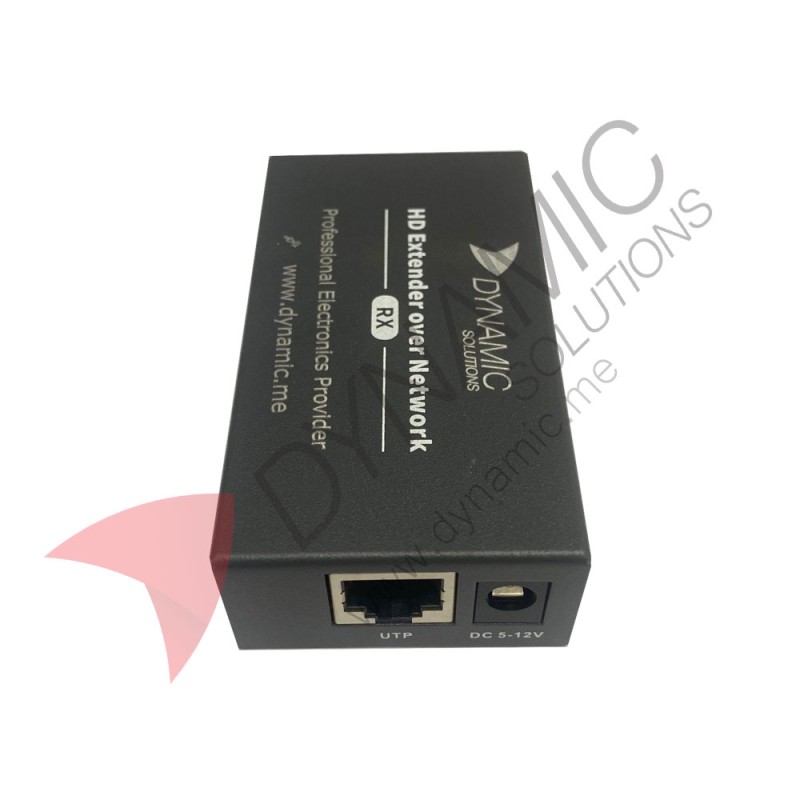

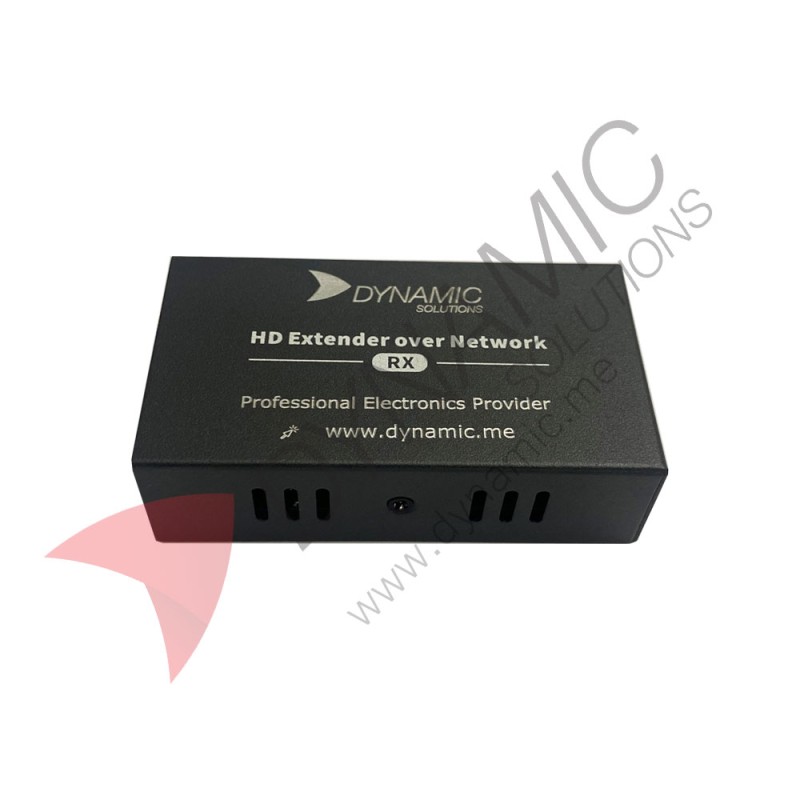

Model Name: HDMI Extender
Resolution: 1080P60Hz
Distance: 200 meters
Power supply: DC 5V
Support local loop out
Reset button (TX, RX), one-to-many application
Material:iron shell
Size:8.1*4.5*2.3cm
Color: Black

Application:
Case 1: One input to one output Application

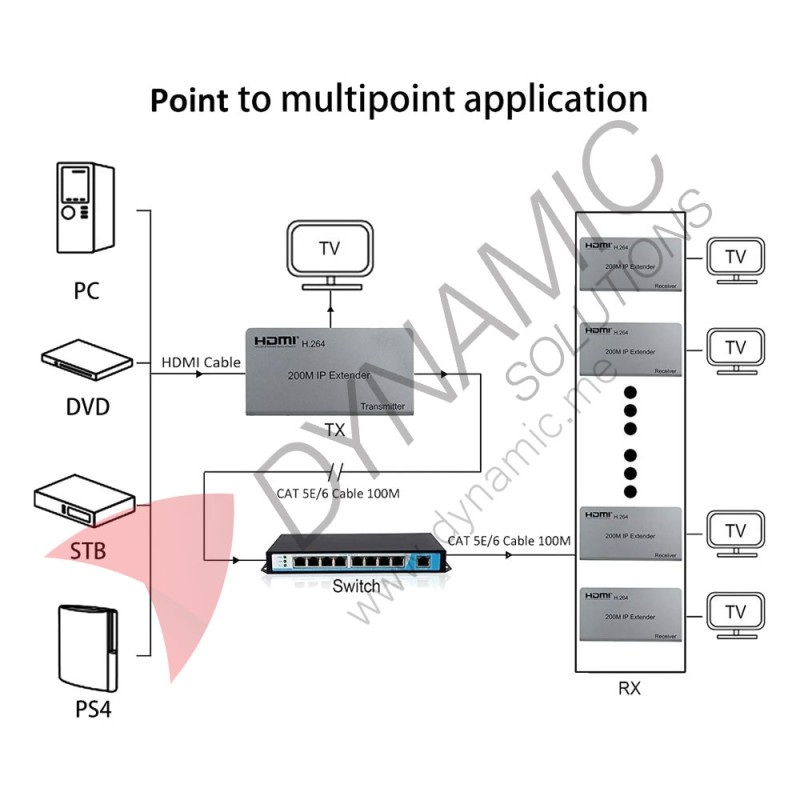

Case 2: One input to multiple outputs Application (Switch Required)

Features:
Extend your HDMI Audio Video Signals. Consider that different types of Ethernet cables have signal attenuation, we recommend Cat5e/6/7 within 200M and Cat5 within 150M
Supports the max resolution of 1920*1080p@60hz, providing you with an ultra-high-definition video vision. It is also backward compatible with 1080p30, 1080i, 720p60, 720p30, and meet your diverse settings.

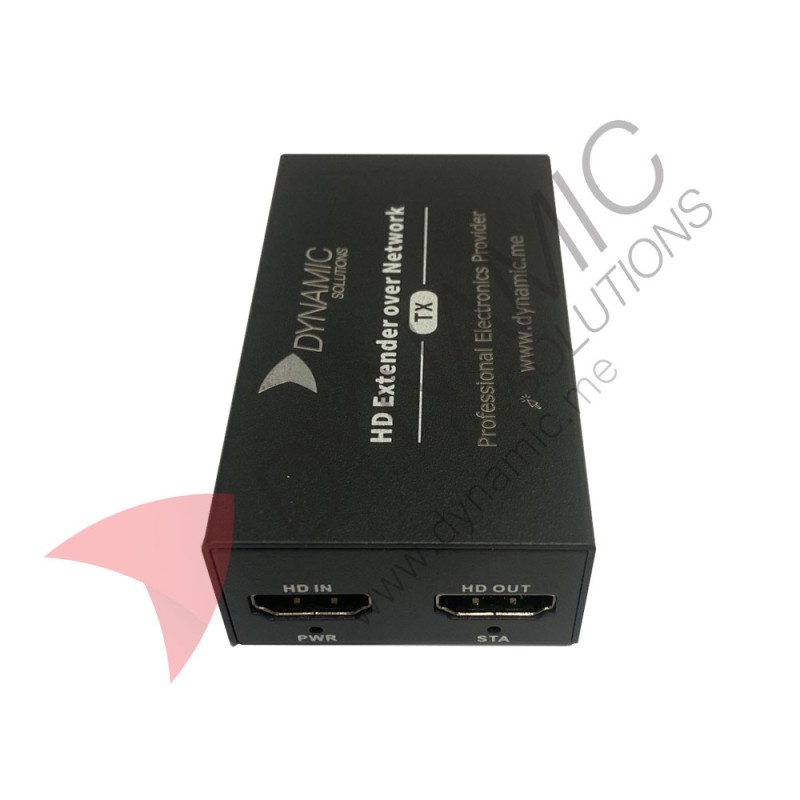

HDMI local output (loopout). This can connect a monitor to the TX and meet your needs for additional expanded screen.
Support IP/TCP. Connect to your independent Ethernet Switch/Router and split to multiple TVs. If the IP conflicts, contact us please and we will solve the problem for you
Simple installation, no software required.
